Custom Worm and Worm Gear Manufacturer

At Precision Gears, Inc., we are a trusted leader in worm and gear set manufacturing, with decades of experience building precision-engineered solutions, designed to perform in the most demanding industrial applications. Our worm gears are relied on across critical industries, including winches, hoists and jacks, food & packaging, construction, agriculture.

Our expertise lies in delivering custom worm gear solutions that meet exact specifications while upholding the highest standards of performance, durability, and reliability. From rapid turnaround times to consistent, high-quality results, we partner with OEMs and businesses that require more than just gears—they need confidence in their components.

Whether you’re developing new equipment or seeking a reliable manufacturing partner, Precision Gears is ready to deliver the worm gear solutions that keep your operations moving forward.

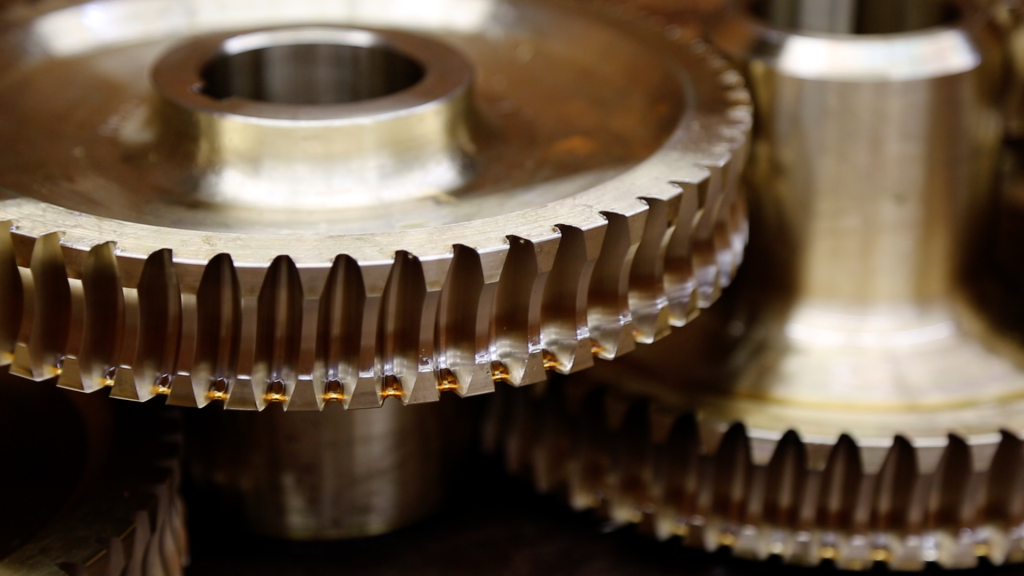

What Are Worm Gears

Worm gears are a type of gear system consisting of a worm (a screw- like shaft) that meshes with a worm wheel (a gear). This design allows worm gears to transmit motion and power between non-parallel, non-intersecting shafts—most commonly at a right angle, unlike bevel gears which typically transmit between intersecting shafts.

Worm gears are a type of gear system consisting of a worm (a screw- like shaft) that meshes with a worm wheel (a gear). This design allows worm gears to transmit motion and power between non-parallel, non-intersecting shafts—most commonly at a right angle, unlike bevel gears which typically transmit between intersecting shafts.

Types of Worm Gears We Offer

We recognize that different applications require different worm gear designs. That’s why we manufacture a wide range of worm gear configurations, each engineered to deliver the optimal balance of torque, speed, and efficiency for customer’s specific application.

Single-Start Worm Shafts and Gears

  • Design: a single thread (or start) on the worm shaft, which results in slower output speeds and higher torque ratios. The curved tooth profile increases contact area, promoting smoother and quieter operation.
  • Benefits: High torque, compact design and excellent precision
  • Safety:  Self-locking
  • Applications: Ideal for heavy-duty, high-load equipment where controlled motion and reliability are critical.

Multi-Start Worm Gears

  • Design: a single thread (or start) on the worm shaft, which results in slower output speeds and higher torque ratios. The curved tooth profile increases contact area, promoting smoother and quietier operation.
  • Benefits: High torque, compact design and excellent precision
  • Safety:  Self-locking
  • Applications: Ideal for heavy-duty, high-load equipment where controlled motion and reliability are critical.

Left-Handed vs. Right-Handed Worm Gears

Design: Worm gears can be manufactured with either left-handed or right-handed threads. The choice determines the direction of rotation in the final assembly, depending on the gearbox or motor design.

Why Choose Precision Gears as Your Worm Gear Manufacturer?

When selecting a worm gear manufacturing partner, quality, reliability, and expertise are essential. At Precision Gears, Inc., we combine decades of experience with state-of-the-art capabilities to deliver worm gears that exceed expectations. Here’s what sets us apart:

Precision Engineering

Every worm gear we produce is manufactured to the highest standards of accuracy and consistency. Our advanced machining technology and rigorous quality control processes ensure each gear maintains exact tolerances, delivering smooth operation and long-lasting performance.

Custom Solutions

We know that no two industries or applications are alike. That’s why we specialize in custom worm gear manufacturing, tailoring gear geometry, materials, and finishes to meet the specific technical requirements of each customer and their worm gear applications.

Fast Lead Times

In fast-paced industries, time-to-market matters. We are equipped to meet urgent production schedules with efficient workflows and responsive service, helping minimize downtime for our OEM’s.

Rigorous Inspection

We thoroughly check contact patterns, center distances, pressure angle, and backlash with mating parts to ensure optimal gear performance and consistent gear quality. Whenever required, we manufacture worm gears and shafts as matched sets.

Experienced Team

Our success is driven by a team of skilled engineers, technicians, and gear specialists who bring years of expertise to every project from design support through delivery.

Request a Quote

To request a quote, please complete this form. If you have a more urgent request, please call us at (262) 384-6360 for immediate assistance.

Get a Quote

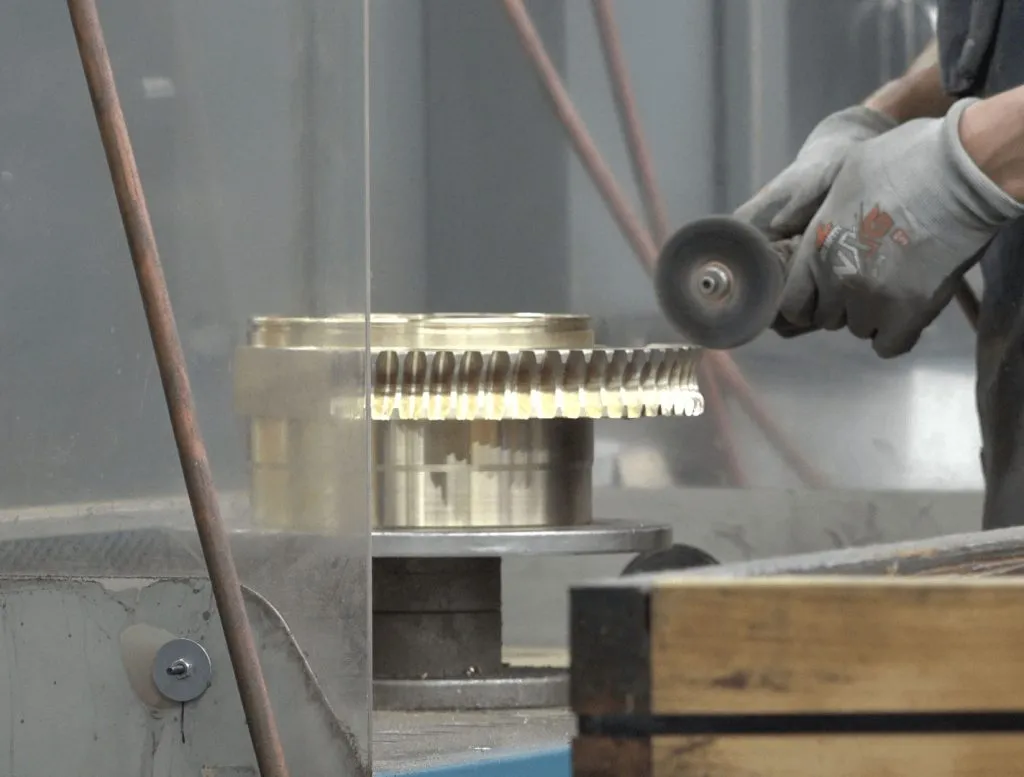

Worm and Worm Gear Manufacturing Process

At Precision Gears, Inc., every worm gear is built to customer prints with a focus on accuracy, consistency, and durability. While we do not design gears, we provide valuable feedback related to industry standards and manufacturability to ensure efficient, cost-effective production. Here’s how our manufacturing process works:

Design & Engineering Support

We collaborate closely with our customers during the engineering review stage, offering input on manufacturability, tolerances, and industry best practices.

Custom Solutions

We work with stainless steel, bronze, cast iron to match the material to the application’s load requirements and operating environment. Warm gears are generally made of softer materials than the worm shaft, making them a sacrificial component in the drive. They are easier to replace in the field and less expensive.

Worm Gear Hobbing

Using advanced CNC hobbing equipment, we cut precise tooth profiles to ensure accuracy, smooth operation, and repeatability across runs.

Worm Shafts

Worm shafts are generally made with CNC lathe, thread milling machine, or rolled, with shaft gear fit and finish controlled for reliable assembly.

Heat Treatment

Worm gear is not heat-treated, but shafts often are heat-treated and ground afterwards to ensure strength and smooth operation.

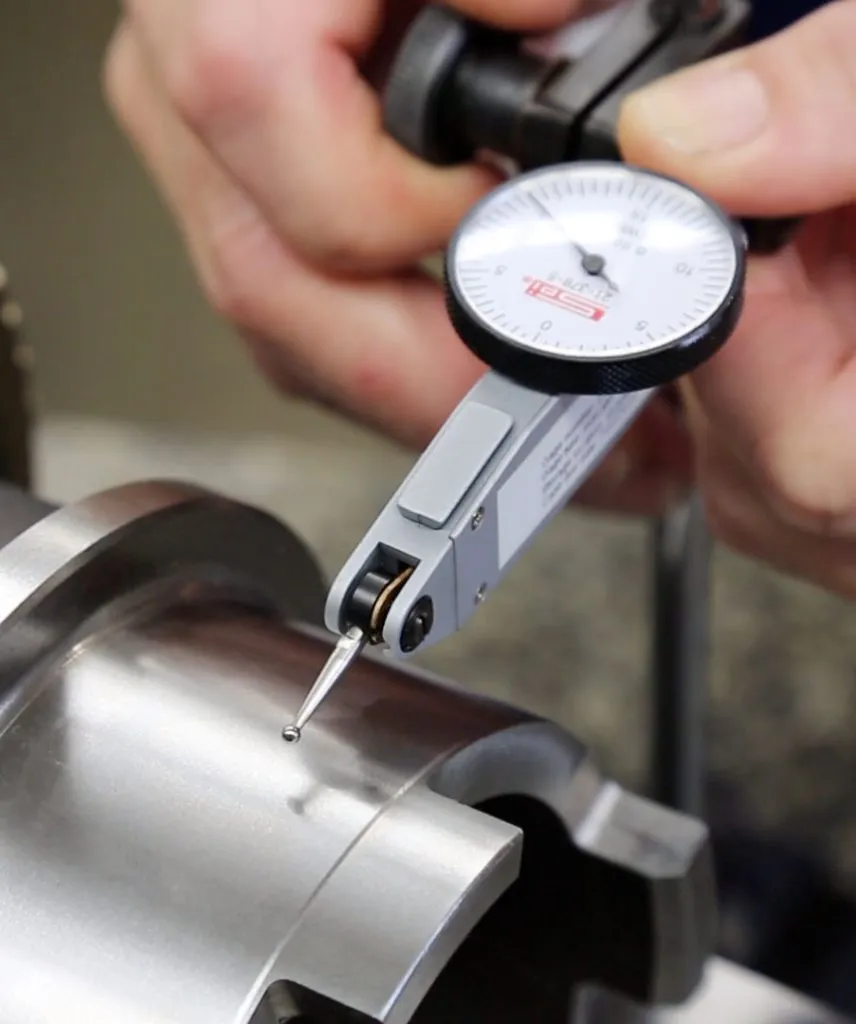

Inspection & Quality Control

Every worm gear undergoes rigorous inspection to confirm it meets exact specifications. We carefully check tooth geometry, contact patterns, and backlash to ensure seamless compatibility with mating parts. For maximum reliability, we often supply worm gears and shafts as matched sets, giving customers a fully integrated, ready-to-install solution.

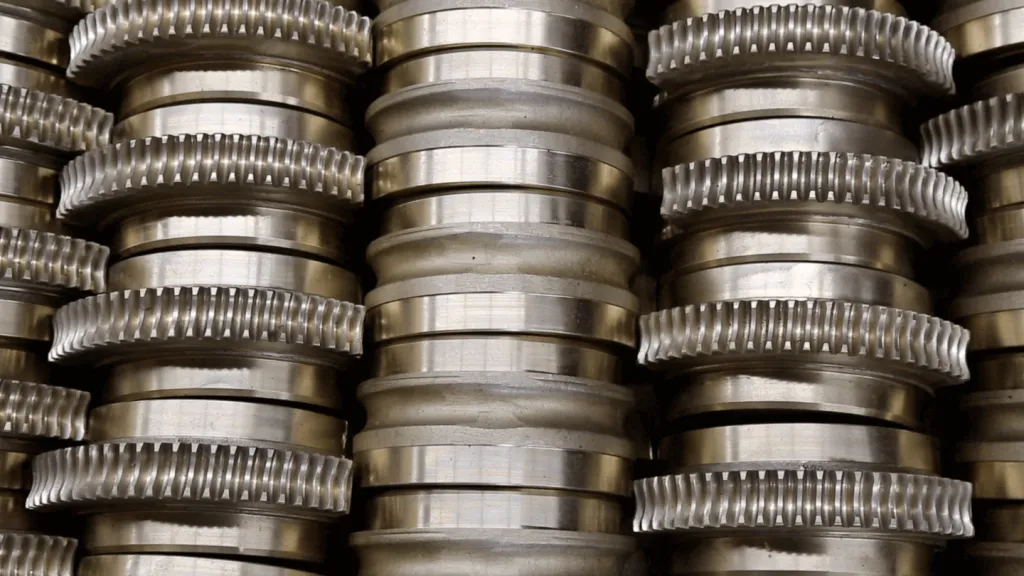

Manufacturing Capabilities & Size Range

At Precision Gears, Inc., we maintain advanced manufacturing capabilities to meet a wide range of custom worm gear requirements with precision and consistency.

Our capabilities include:

  • Module from 0.25 to 12
  • Worm gears in diameters from ½” to 25”
  • Worms from ½” to 8”/li>
  • Diametral pitch for worms and worm gears from 96 up to 2.5
  • Design: a single thread (or start) on the worm shaft, which results in slower output speeds and higher torque ratios. The curved tooth profile increases contact area, promoting smoother and quietier operation.
  • Benefits: High torque, compact design and excellent precision
  • Safety:  Self-locking
  • Applications: Ideal for heavy-duty, high-load equipment where controlled motion and reliability are critical.

Industries Served

At Precision Gears, Inc., we partner with OEMs across various industries to deliver custom worm gear solutions built to meet the unique requirements of each application.

Construction

Built for heavy machinery with high torque requirements, including excavators, rollers, cement trowels, and lifting systems.

Industrial

Used in winches, hoists, gearboxes, and manufacturing equipment requiring smooth and reliable motion.

Agriculture, Lawn and Garden

Essential in tractors, harvesters, irrigation systems, farming equipment, lawn mowers and snow blowers

Food & Packaging Equipment

Compact, quiet worm gears for food processing and packaging systems, where precision and reliability are critical.

Custom Worm Gear Solutions

At Precision Gears, Inc., we build custom worm gear solutions to exact customer specifications. Whether you require prototypes or high-volume production, our gears are manufactured for consistent accuracy and reliability.

We offer flexibility in size, material, and configuration. This versatility ensures that every worm gear aligns perfectly with your technical requirements.

By collaborating directly with OEMs and engineers, we optimize each gear for efficiency, strength, and long service life, creating solutions you can count on.

Request a Quote

To request a quote, please complete this form. If you have a more urgent request, please call us at (262) 384-6360 for immediate assistance.

Get a Quote

Frequently Asked Questions (FAQ)

What are the advantages of using worm gears in heavy machinery?

Worm gears provide high torque reduction in a compact design, making them ideal for heavy machinery. They operate smoothly and quietly, and in some configurations, offer self-locking capability, which prevents reverse motion without additional braking systems.

What types of materials are used to manufacture worm gears?

Common materials include bronze, steel and cast iron. Material selection depends on the application—bronze is often used for wear resistance, steel for strength, cast iron for durability.

How do I determine the right type of worm gear for my application?

The right worm gear depends on factors such as load, speed, torque requirements, space limitations, and operating environment. Precision Gears works with OEMs to review specifications and provide feedback for manufacturability and performance.

Can Precision Gears manufacture custom worm gears based on specific requirements?

Yes. We specialize in custom worm gear solutions built to exact customer prints and specifications. Our flexibility in size, material, and configuration ensures that each gear fits your unique application.

What is the typical lead time for producing custom worm gears?

Lead times vary depending on complexity, volume, and material availability. Thanks to streamlined workflows, we pride ourselves on fast turnaround times to keep your production schedules on track.

How does Precision Gears ensure the quality and precision of its worm gears?

All gears undergo rigorous inspection, including checks of contact patterns, tooth geometry, and backlash at the specified center distance. We can also manufacture matched worm gear and shaft sets to ensure seamless compatibility and long-term performance.

Can worm gears be manufactured for high-torque applications?

Absolutely. Worm gears are well-suited for high-torque, heavy-load applications, especially when compact design and controlled motion are required.

What is the difference between left-handed and right-handed worm gears?

The difference lies in the direction of the worm thread. Left-handed and right-handed worms change the direction of rotation in the gear system. Precision Gears manufactures both types to fit your specific machinery design.

How can I request a quote or consultation for my worm gear project?

Simply use the contact us form on our website or by calling us at (262) 542-426. Provide us with your prints and requirements, and our team will respond promptly with a detailed quote or consultation.

What is the worm gear manufacturing process at Precision Gears?

Our process includes reviewing customer prints, turning, hobbing and broaching, and inspection. Each step ensures accuracy, consistency, and durability, supported by controlled gear cutting practices.

Are there any size or design limitations for custom worm gears?

We can manufacture worm gears up to 25″ OD, worms up to 6″ and 36″ long. Beyond that, we encourage customers to discuss their project needs with our engineering team for feasibility.

How do I maintain and ensure the longevity of worm gears in my machinery?

Proper lubrication, regular inspections, and ensuring correct alignment with mating parts are key to maximizing worm gear life. Using gears manufactured and supplied as matched sets also helps reduce wear and improve efficiency.
